Waterproof 40U Outdoor Telecom Cabinet With Remote Monitory System And Power Distribution
1. Outdoor Telecom Cabinet Description
This outdoor telecom cabinet is designed and produced by ESTEL, which is made of high-quality galvanized steel,coated with anti-corrosive and anti-ultraviolet powder, and with IP55 protection grade. The cabinet is 2100mm High and 900mm Wide and 900mm Deep, equipped with a power system, lightning protection and grounding system, temperature control system, lighting system, and user equipment installation space.
2. Outdoor Telecom Cabinet Features
- Waterproof, dust proof:
- Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection,IP 55
- Galvanized steel
- Anti-theft three point lock
- The cabinet includes 19” standard installation rack.
- The cabinet cooling uses 220AC air conditioner cooling system
- Including -48VDC illumination lamp.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
- At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
3. Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |

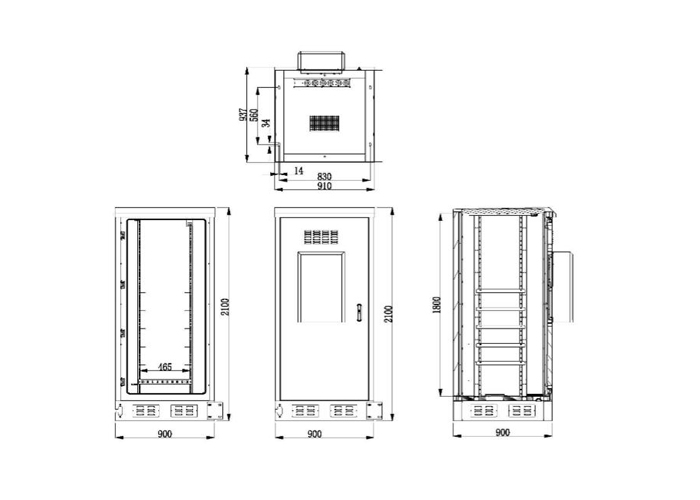

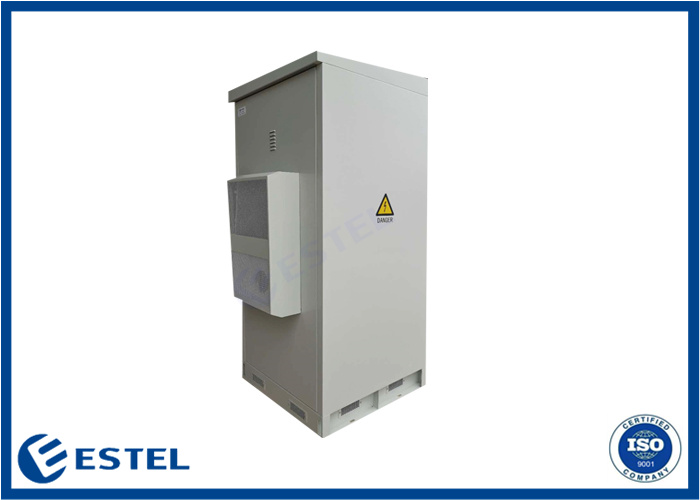

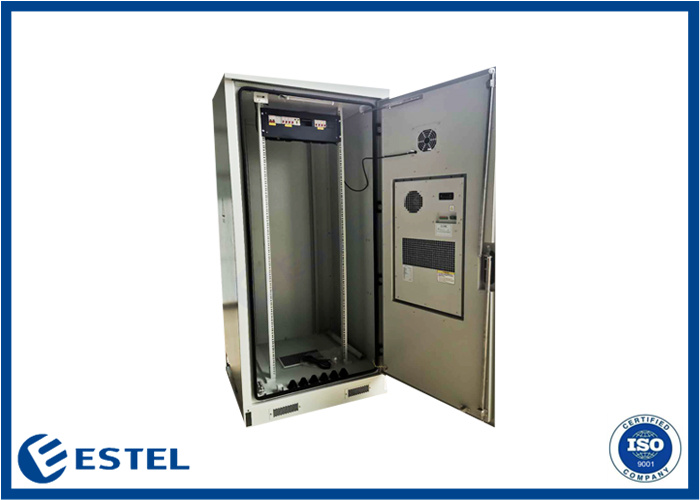

- Cabinet Pictures and Diagram
- Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack, 40U |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized steel, single wall with insulation |
| Heat Insulation | 20mm PEF |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19” 40U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall with insulation |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: AC220V, 50Hz |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V |
| 4 | Environment Monitoring Unit | 1 | Set | 1U, AC220V, support SNMP communication |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 1 | PC | |
| 9 | LED Lamp | 1 | PC | AC220V |
| 10 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 Input Voltage: AC220V. |
| 11 | Package | 1 | Set | Wooden Case |
5. Air conditioner Datasheet:
1) Product introduction
1.1. The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.
1.2. The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
6. Various cooling system for your choice
- Natural ventilation cooling system
- DC/AC Air conditioner cooling system
- Heat exchanger cooling system
- Fan cooling system
- TEC cooling system
7. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
8.Floor mounting
- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
