Rectifier System Outdoor Telecom Cabinet Power Distribution Heat Insulation

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : 131080820050001

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

External size : W× D×H 800 ×800 ×2000mm

Cabinet Lock : Anti-theft three point lock(support padlock)

Cable Inlets : From cabinet bottom

Mounting type : Floor mount

Cooling system : Air conditioner and fans.

Protection Level : IP55

Contact Now

Double Wall Air Conditioner Cooling Outdoor Telecom Equipment Cabinet With Rectifier System , Power Distribution Unit

1. Technical Parameters

Item

Type Technical Parameter
StructureDimension

External Dimension: W*D*H 800*800*2000mm

Layout1 compartment
Equipment Installation Method19” rack
DoorWith one front door, and special lock for outdoor cabinet (support padlock)
MaterialGalvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate
Heat InsulationThere are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
StructureWelded or assembled
Ingress ProtectionIP55
Temperature ControlCoolingAC220V air conditioner and DC48V fans
Lightning ProofGrade B lightning proofNominal: 60KA, Max.: 100KA
LightingLED lamp48V LED lamps (immovable), with protective circuit breaker
TemperatureTemperatureWorking Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
HumidityRelative Humidity5% ~ 100%
PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation IntensitySolar Radiation Intensity1120 ×(1±5%)W/m2

2. Cabinet Application

(1) 4G system

(2) Communication/network integrated service

(3) Access/transmission switching station

(4) Emergency communication/transmission

(5) Suitable for outdoor environment, such as roadside, park, remote mountain area, building roof.

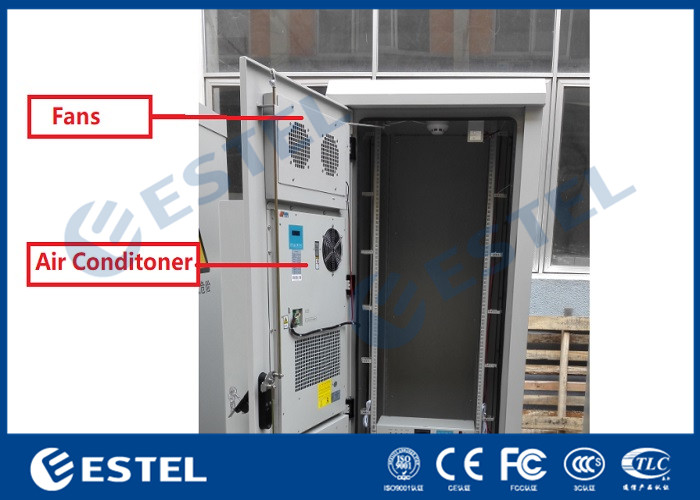

3. Cooling System

AC220V air conditioner and DC48V fans

Rectifier System Outdoor Telecom Cabinet Power Distribution Heat Insulation

4. Lock Theft Proof Design

(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

(2) Three point lock

Rectifier System Outdoor Telecom Cabinet Power Distribution Heat Insulation

5. LED Lamp And Door Sensor

LED lamp and door sensor are installed at the top of the cabinet.


6. Delivery Time

Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.
