18U Outdoor Electrical Cabinets And Enclosures IP55 With Rectifier Module Battery

Name: 18U Outdoor Electrical Cabinets And Enclosures IP55 With Rectifier Module Battery
Brand: ESTEL
Price: 1 USD

China 18U Outdoor Electrical Cabinets And Enclosures IP55 With Rectifier Module Battery wholesale

Brand Name : ESTEL

Model Number : ET7575115-EQ

Certification : ISO9001

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1800PCS per month

Delivery Time : 15 to 20 days

Packaging Details : Wooden Case with Pallet

Application : Outdoor Telecom Site

Protection : IP55

Material : Galvanized steel, single wall with heat insulation

Space : 18U 19" Rack

Cooling System : Air Conditioner

Coating : Anti-corrosion black polyester outdoor powder coating

Installation Mode : Floor mount

Rectifier System : GPE4860

Battery : Lithium Iron Phosphate Battery; 4850,DC48V, 50AH

Contact Now

IP55 Waterproof 18U Outdoor Telecom Cabinet With Rectifier Module Battery / Outdoor Power Enclosure

1. Application

The ET7575115-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Features

(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: air conditioner. (Other cooling option: heat exchanger and fan).

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

3. Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension: W×D×H 750×750×1150mm
	Layout	1 compartment
	Equipment Installation Method	19” rack
	Door	With one front door, and anti-theft four point lock for outdoor cabinet.
	Material	Galvanized steel,single wall with heat insulation
	Ingress Protection	IP55
Temperature Control	Cooling	Air Conditioner
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1120 ×(1±5%)W/m2

4. Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	PC	(1) External Dimension: W×D×H 750×750×1150mm (2)The upper part is used for installing power system and 4U equipment,the lower part is used for installing battery. (3) With 1 front door, and anti-theft three point lock(support padlock) (4) Material: galvanized steel; sinle wall, 1.5mm thickness, with 20mm insulation (5) Installation Method: floor mountt, including installation accessories
2	Air Conditioner	1	PC	DC48V, 500W
3	Rectifier System	1	PC	Model: GPE4860 (DC48V, 60A) Including: (1) 2×30A Rectifier Module(1+1 redundancy, one is for primary use and the other is for standby) (2) 1× Monitoring Module; (3) Distribution frame.
4	Battery	2	PC	Lithium Iron Phosphate Battery; 4850,DC48V, 50AH
5	Power Distribution Unit	1	PC	Grade B Lightning Proof AC Input: 63A/2P1; DC Output:16A/1P3; Including one socket; Height:3U
6	Package	1	PC	Wooden Case

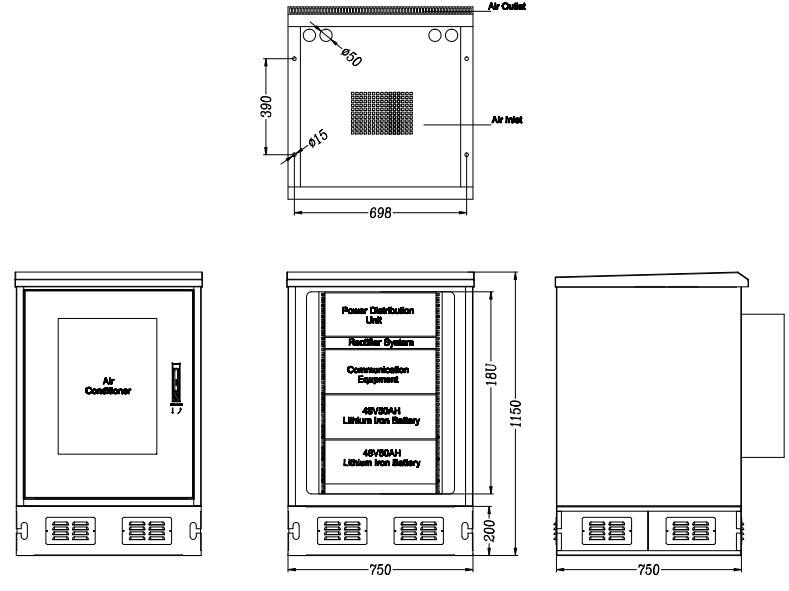

5. Cabinet Dimension

External Dimension: W×D×H 750×750×1150mm

18U Outdoor Electrical Cabinets And Enclosures IP55 With Rectifier Module Battery

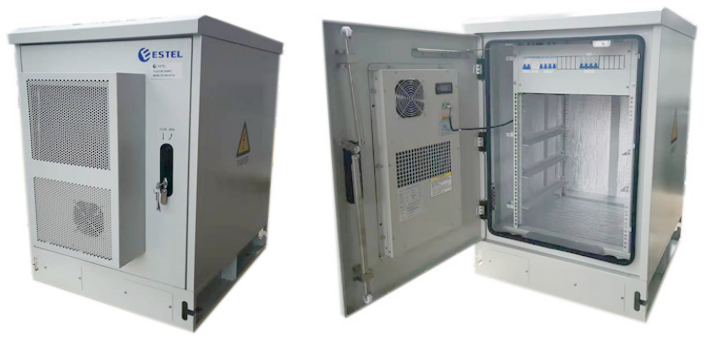

6. Cabinet Picture

18U Outdoor Electrical Cabinets And Enclosures IP55 With Rectifier Module Battery

7. Packing and shipping

Product Tags:

telecom equipment cabinet

outdoor telecom enclosure

18U Outdoor Electrical Cabinets And Enclosures IP55 With Rectifier Module Battery Images
